Sleep Apnea Machine Infographic

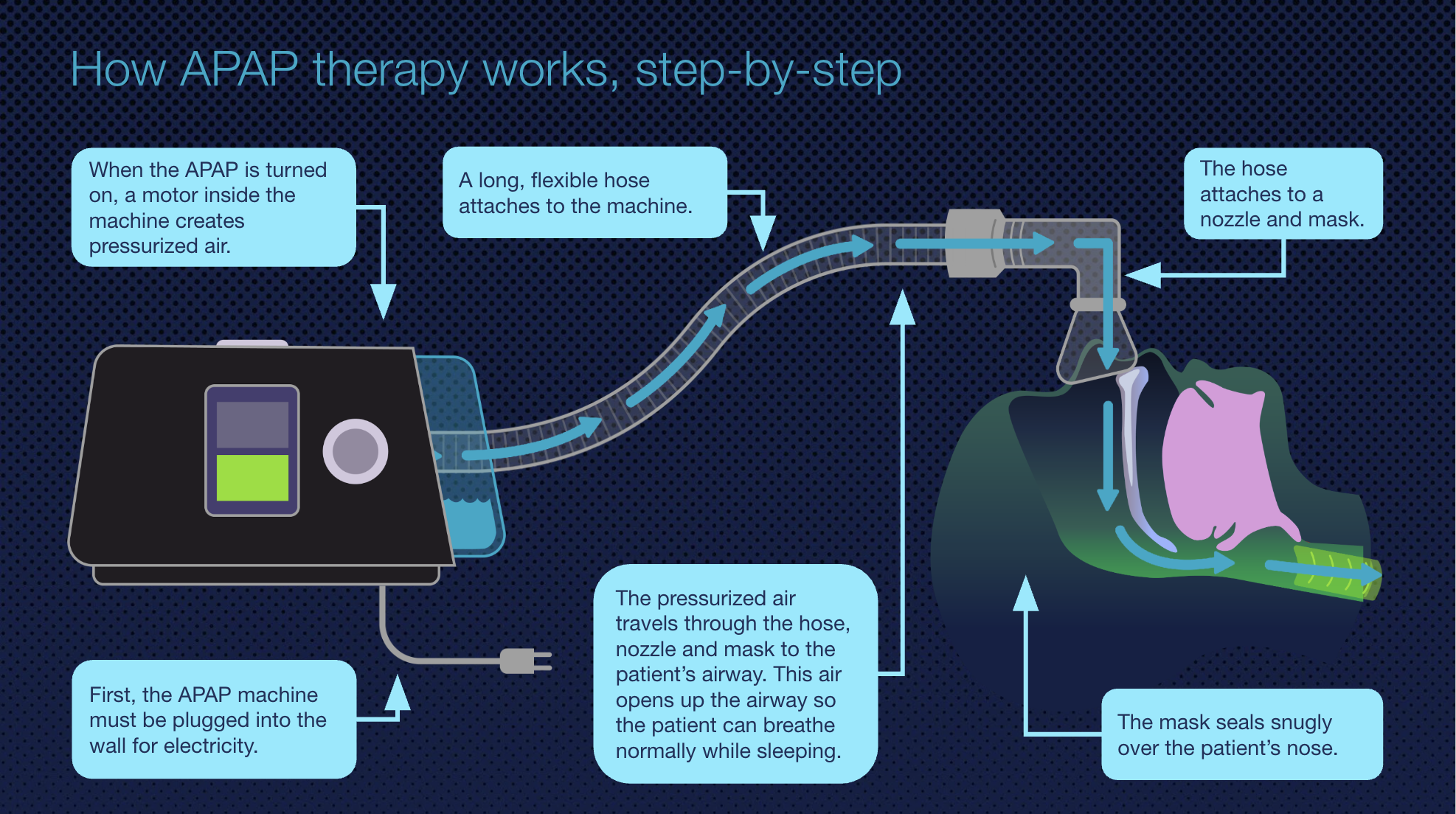

How the ResMed Autosense 10 APAP machine works

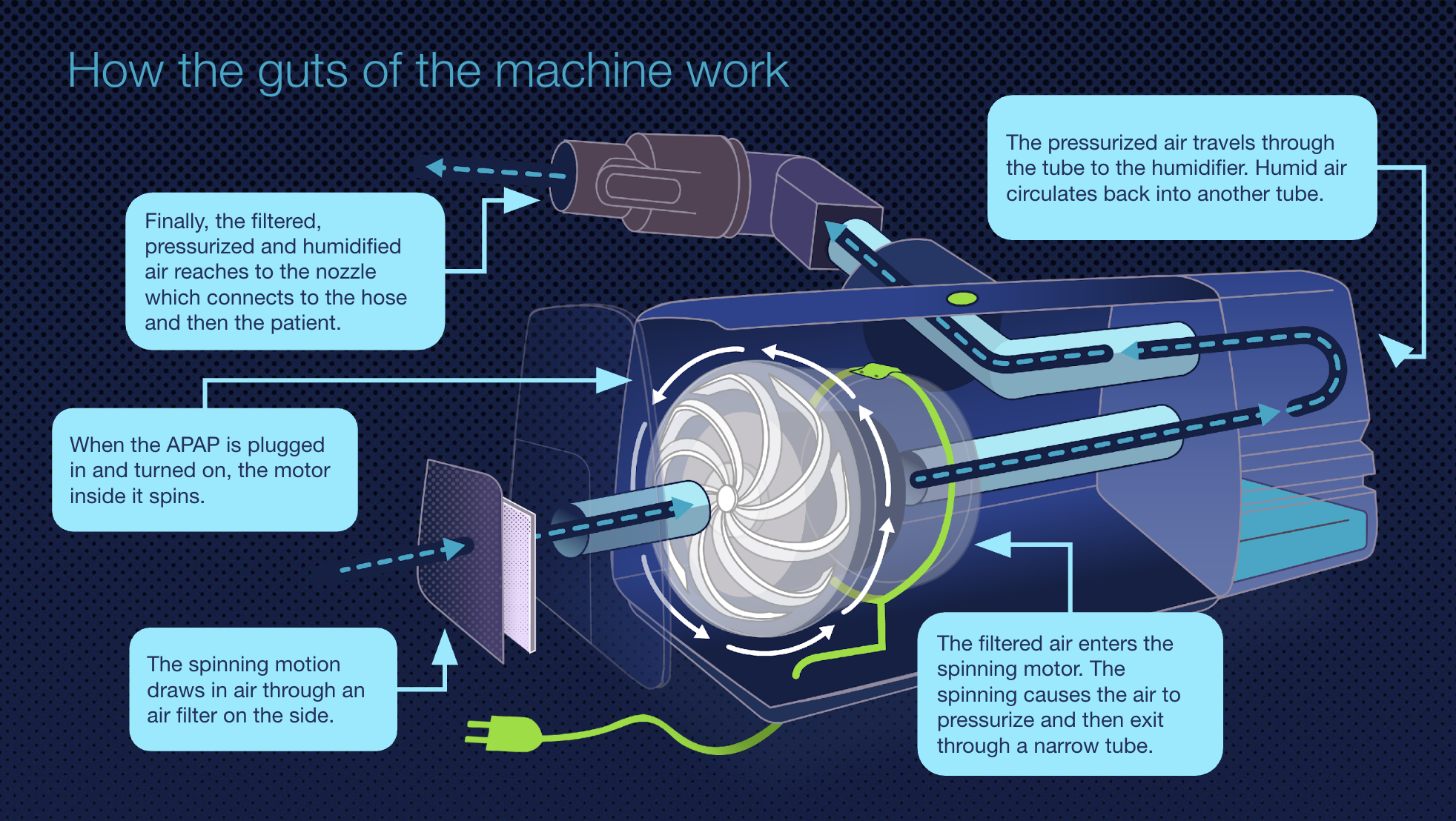

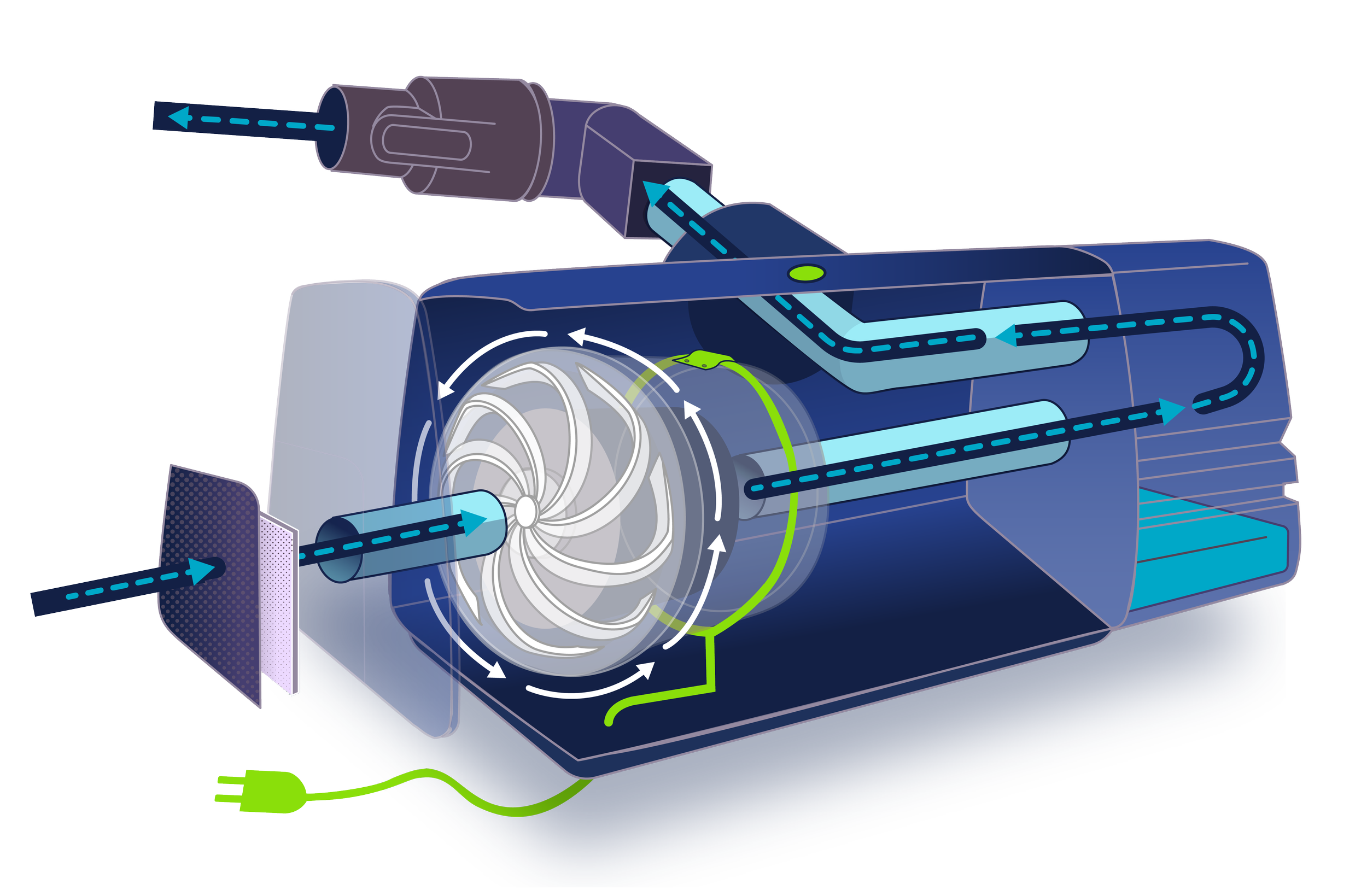

As a personal project to demonstrate my skills in illustrating and explaining complex subjects, I took apart my sleep apnea machine and created slides to show how it works. All images were created in Adobe Illustrator.
